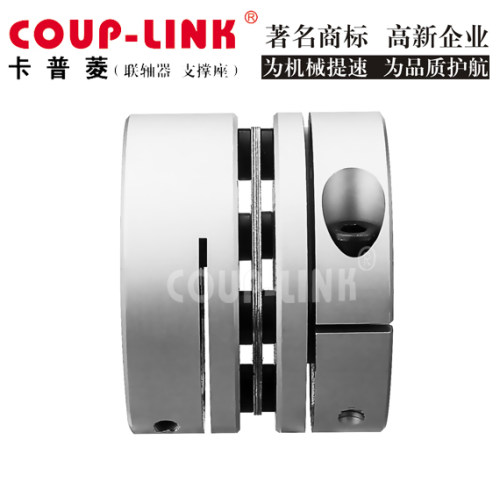

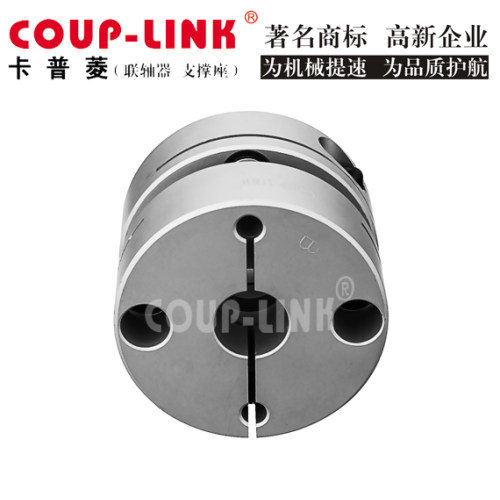

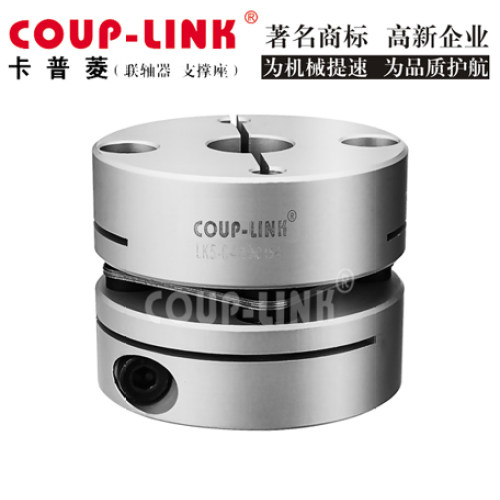

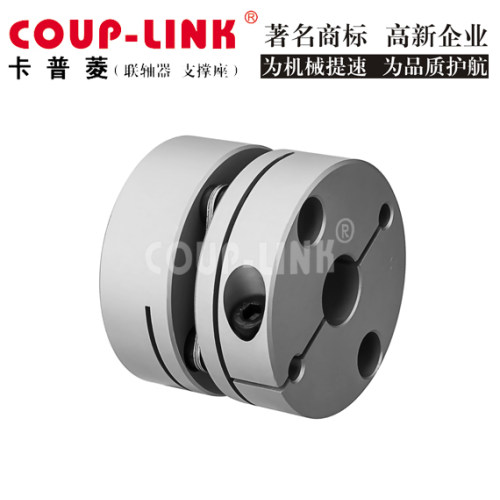

LK5 Series Clamp Type（Single Plate Springs）
· · High torque capacity and excellent response
· · Zero backlash
· · ldentical clockwise and anticlockwise rotational characteristics
· · Stainless steel plate springs absorb angular misalignment
LK5 Series Clamp Type（Single Plate Springs）
单位(unit): mm
Model selection ：
Please choose the model
(英)LK5-C39：D=39,L=34.5,d1d2:5~16
(英)LK5-C34：D=34,L=32.6,d1d2:4~14
(英)LK5-C34S：D=34,L=30.4,d1d2:5~14
(英)LK5-C30：D=30,L=25.8,d1d2:3~14
(英)LK5-C26：D=26,L=25.5,d1d2:3~10
(英)LK5-C19：D=19.5,L=20.7,d1d2:2~8
(英)LK5-C16：D=16,L=17,d1d2:3~6
(英)LK5-C15：D=15,L=16.45,d1d2:3~5
(英)LK5-C12：D=12,L=12.35,d1d2:3~5
(英)LK5-C44：D=44,L=34.8,d1d2:8~19
(英)LK5-C50：D=50,L=40.5,d1d2:8~22
(英)LK5-C56：D=56,L=45.5,d1d2:8~24
(英)LK5-C62：D=62,L=51,d1d2:12~30
(英)LK5-C68：D=68,L=54,d1d2:10~35
(英)LK5-C82：D=82,L=68,d1d2:18~40
(英)LK5-C94：D=94,L=68.5,d1d2:22~40
(英)LK5-C104：D=104,L=70,d1d2:18~45
