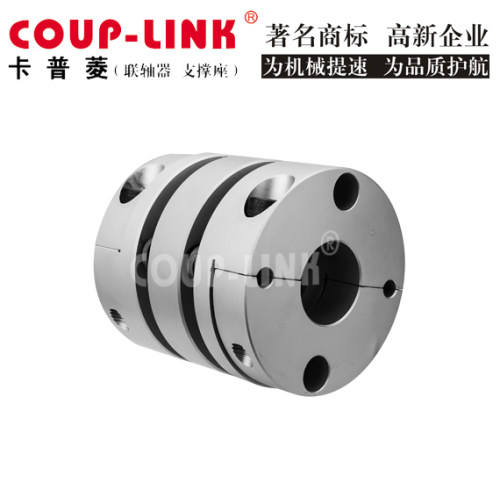

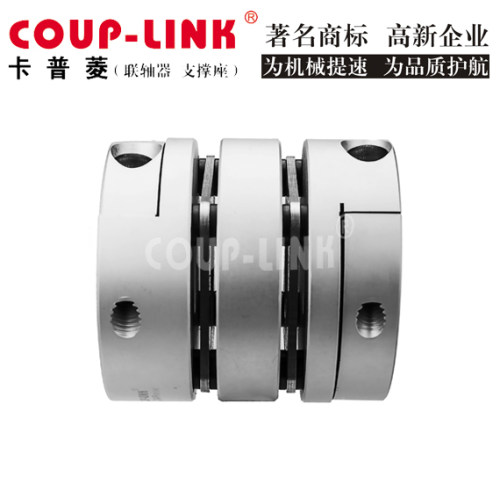

LK5 Series Clamp Type（Double Plate Springs）
· · High torque capacity and excellent response
· · Zero backlash
· · ldentical clockwise and anticlockwise rotational characteristics
· · Stainless steel plate springs absorb parallel、angular misalignment
LK5 Series Clamp Type（Double Plate Springs）
单位(unit): mm
Model selection ：
Please choose the model

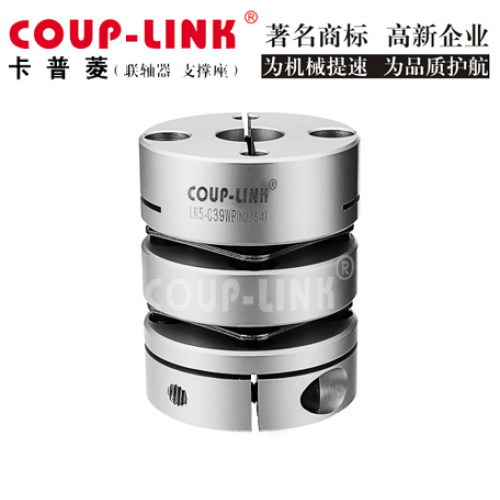

(英)LK5-C39-WP：D=39,L=49,d1d2:5~16
(英)LK5-C34-WP：D=34,L=45,d1d2:4~14
(英)LK5-C34S-WP：D=34,L=41,d1d2:5~14
(英)LK5-C30-WP：D=30,L=35,d1d2:3~14
(英)LK5-C26-WP：D=26,L=35,d1d2:3~10
(英)LK5-C19-WP：D=19.5,L=27.8,d1d2:2~8
(英)LK5-C16-WP：D=16,L=23,d1d2:3~6
(英)LK5-C15-WP：D=15,L=20,d1d2:3~5
(英)LK5-C12-WP：D=12,L=15.9,d1d2:3~5
(英)LK5-C44-WP：D=44,L=50,d1d2:8~19
(英)LK5-C50-WP：D=50,L=57,d1d2:8~22
(英)LK5-C56-WP：D=56,L=63,d1d2:8~24
(英)LK5-C62-WP：D=62,L=69.5,d1d2:12~30
(英)LK5-C68-WP：D=68,L=74,d1d2:10~35
(英)LK5-C82-WP：D=82,L=98,d1d2:18~40
(英)LK5-C94-WP：D=94,L=98,d1d2:22~40
(英)LK5-C104-WP：D=104,L=102,d1d2:18~45
