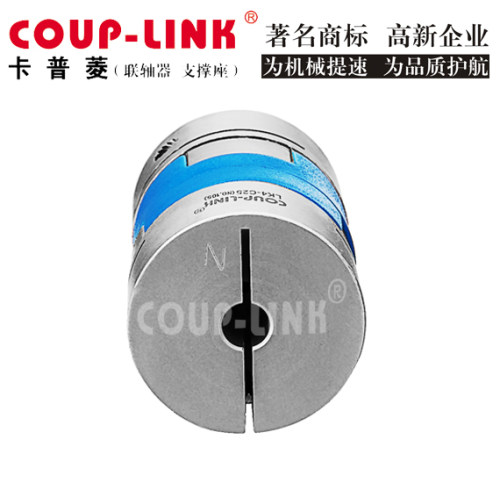

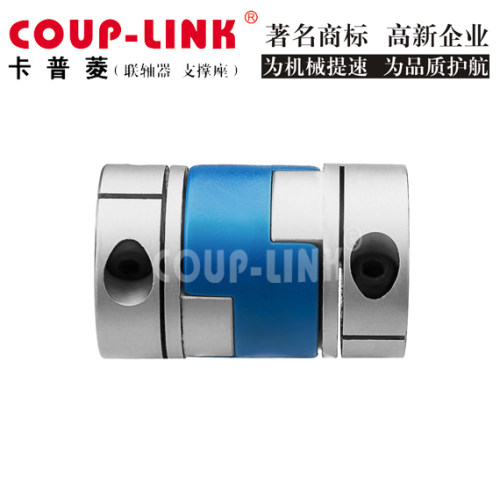

LK4 Series Clamp Type（Oldham）
· · Oldham type flexible coupling
· · Allows high parallel and angular misalignments
· · Zero backlash
· · High torsional stiffness and response
· · Simple configuration enable ease of assembly
LK4 Series Clamp Type（Oldham）
单位(unit): mm
Model selection ：
Please choose the model
(英)LK4-C12S：D=12,L=15,d1d2:3~5
(英)LK4-C16S：D=16,L=21,d1d2:2~6
(英)LK4-C20S：D=20,L=22.5,d1d2:4~8
(英)LK4-C25S：D=25,L=27.5,d1d2:5~10

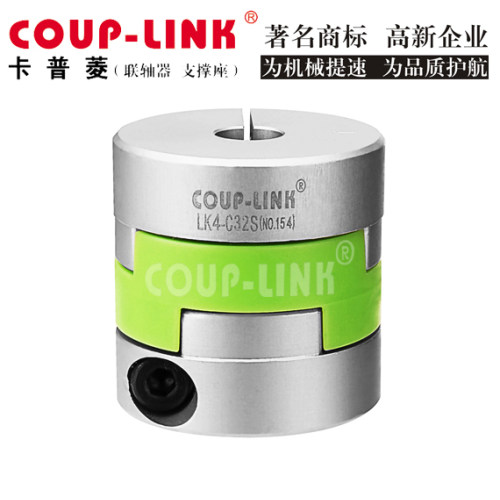

(英)LK4-C32S：D=32,L=33,d1d2:7~14
(英)LK4-C35S：D=35,L=35,d1d2:5~16

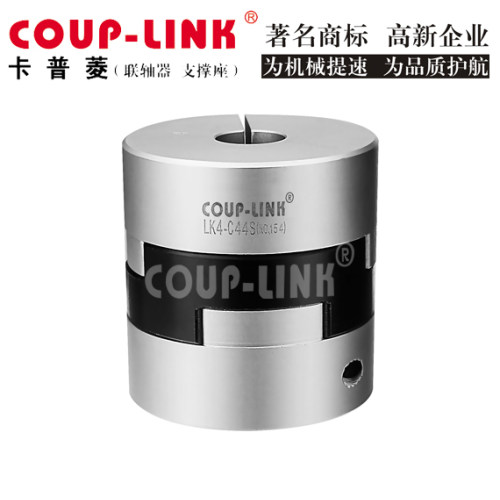

(英)LK4-C44S：D=44,L=46,d1d2:6~22
(英)LK4-C55S：D=55,L=57,d1d2:8~25
(英)LK4-C70S：D=70,L=77,d1d2:12~30
(英)LK4-C16：D=16,L=30,d1d2:3~6
(英)LK4-C20：D=20,L=33,d1d2:4~8

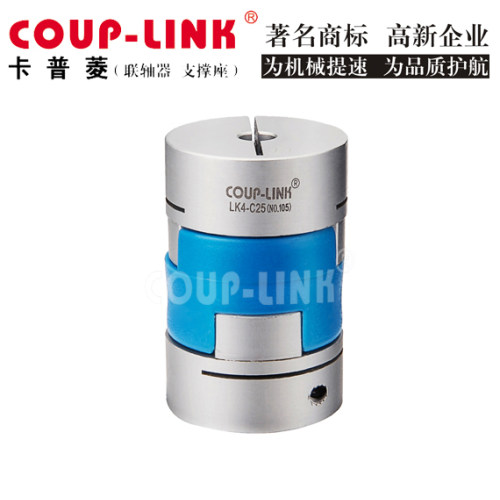

(英)LK4-C25：D=25,L=39,d1d2:4~10
(英)LK4-C32：D=32,L=45,d1d2:5~14
(英)LK4-C40：D=40,L=50,d1d2:6~16
(英)LK4-C50：D=50,L=58,d1d2:10~20
(英)LK4-C63：D=63,L=71,d1d2:11~25
